Welcome to CraftD¶

Features¶

🔗 Compatibility¶

Tech	Support
View System - Android	✅ Supported
Jetpack Compose - Android	✅ Supported
Widgets Flutter	✅ Supported
SwiftUI - iOS	✅ Supported
Compose Multiplatform	✅ Supported

Components that already exist in the library¶

Component	Jetpack Compose / CMP	Android View	Flutter	SwiftUI
Button	X	X	X	-
Text	X	X	X	X
Checkbox	X	-	-	-

Backend structure expected by CraftD¶

To render components dynamically, CraftD expects your backend to return a JSON array where:

key is the identifier of the component you want to render (ex: CraftDTextView, CraftDButton).
value represents the structure and properties of that component.
Each platform (Compose, View System, Flutter, SwiftUI) interprets these properties according to its own specification.

Example of expected structure¶

[
  {
    "key": "CraftDTextView",
    "value": {
      "text": "Knife",
      "backgroundHex" : "#9A71F6",
      "textSize": "30",
      "textColorHex": "#000000"
    }
  },
  {
    "key": "CraftDButton",
    "value": {
      "text": "Some Action :)",
      "align": "RIGHT",
      "textAlign": "CENTER",
      "textAllCaps": true,
      "textSize": "20",
      "textColorHex": "#FFFFFF",
      "backgroundHex": "#2fa003",
      "actionProperties": {
        "deeplink": "CraftDview://any",
        "analytics": {
          "category": "hello",
          "action": "world",
          "label": "everywhere"
        }
      }
    }
  }
]

How to extend¶

Each component type has its own platform-specific specification for how it is built or rendered, but all of them use the same JSON structure. To understand all available properties, check the documentation for:

Compose
Android View System
Flutter
SwiftUI

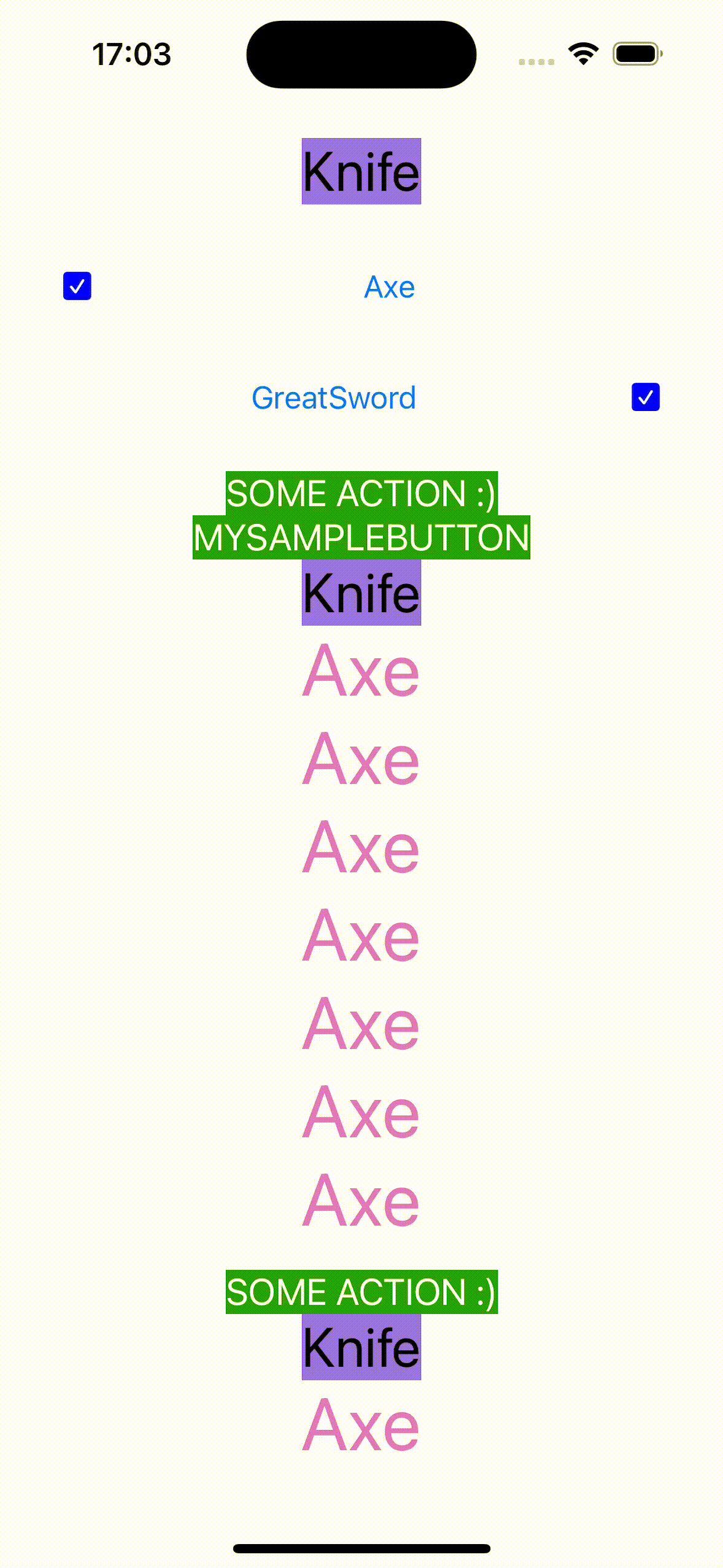

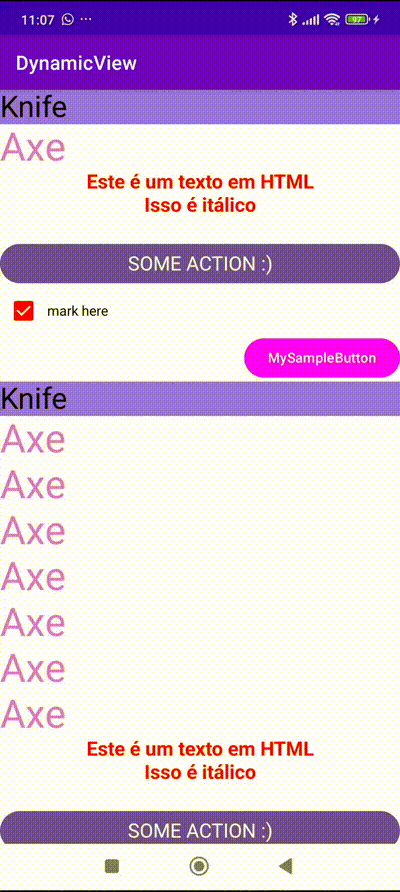

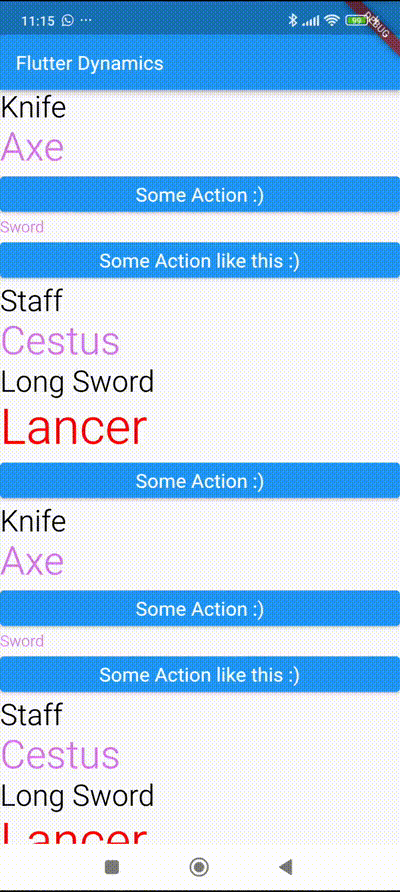

Screen recordings¶

Credits

A Server Driven UI library for Android. Inspired by the DynamicView.
